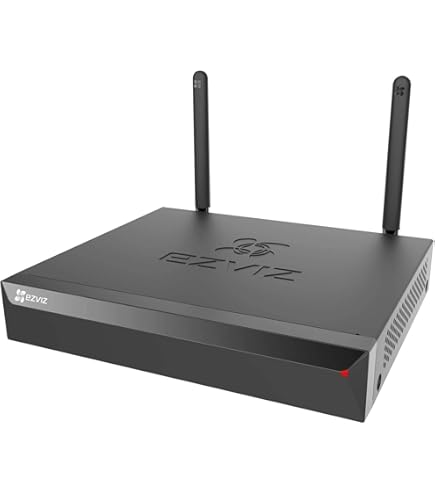

EZVIZ NVR CS-X5S-4W

EZVIZ CS-X5S-8W – Key Features

• 🖥 Type: Wireless Network Video Recorder (NVR) with HDMI and VGA video outputs

• 🎥 Camera Support: Supports up to 8 Wi-Fi cameras (wireless) simultaneously

• 🌐 Max Resolution for Input: Up to 5 Megapixels cameras supported

• 📡 Wi-Fi Range: ~100 meters (in open field) via 2.4 GHz band

• 🧠 Video Compression: H.265 and H.264 formats for efficient storage and bandwidth

• 💾 Storage:
  • One built-in SATA interface for 3.5" HDD (up to 8 TB)
  • No built-in HDD; you must install hard drive separately

• 🎞 Recording Modes: Manual, scheduled, motion-triggered, event-based

• ▶ Playback Modes: Live play, event playback, tag playback, etc.

• 🖥 Video Output:
  • HDMI output (2K resolution)
  • VGA output (1080p resolution)

• ⚙ Multi-tasking (Pentaplex): Supports live view, record, playback, backup, remote access simultaneously

• 🧩 Compatibility: Supports ONVIF & open protocol cameras in addition to EZVIZ ones

• 🧰 Backup & Ports:
  • USB port for external backup (flash drives or HDD)
  • RJ45 Ethernet port (10/100 Mbps) for network connection

• 💡 Other Features:
  • Supports dual-stream operation
  • Hardware reset support
  • No built-in PoE power support

• 🔌 Power Supply: DC 12V / 1.5A

• 📏 Dimensions & Weight: Approx. 270 mm × 235 mm × 44.5 mm; ~0.9 kg (without HDD)
